BOLT
BOLT

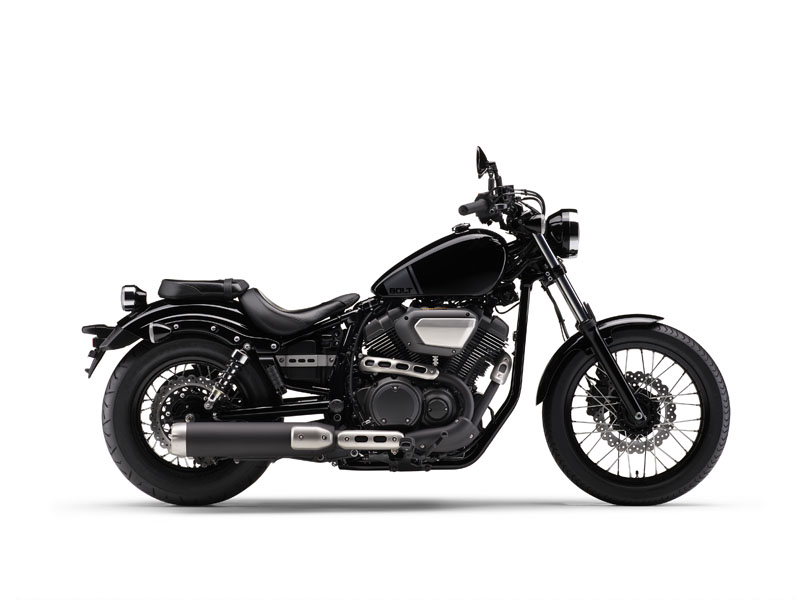

Bolt is a bobber-styled ride that encapsulates the stripped back look wrapped around a pulsating V-twin.
Compact and stylish with a low seat height, this Bolt delivers a refined and agile ride while retaining the character that is a critical part of owning such an individual machine. Yamaha's flat line style and use of exposed metal components accentuates the bike's pure simplicity while the V-twin motor provides spirited performance and unquestioned reliability. The stripped back Bolt also provides a perfect entry into the world of customisation.
This model Bolt gains several new stylish details including a flangeless fuel tank design for an even cleaner look. And new wire-spoked aluminium rimmed wheels enhance Bolt's authentic Bobber styling.
Bolt is everything you need and nothing you don't.
Powerful brakes

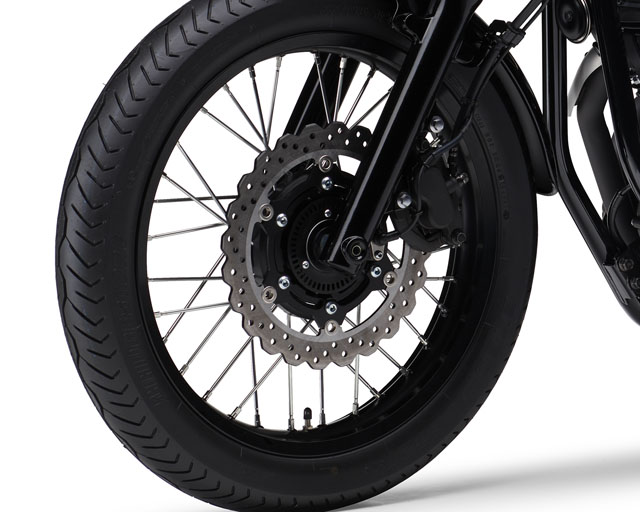

The 298mm front disc brake and 298mm rear disc brake both use wave rotors, the style usually found on sport bikes. The front brake uses a floating-mount for great heat-distortion resistance, contributing to excellent braking performance.
2 into 1 exhaust
The minimalist-style 2-into-1 exhaust pipe layout contributes to a lively performance and styling of the machine while delivering a throaty and pleasing exhaust note.
Modern instrumentation
A round, smoked-lens LCD digital speedometer adds to the modern take on the traditional bobber style.
Make it your own
The options for the Bolt are limited only by the owner's imagination. And as the perfect canvas for customisation, Bolt is the ultimate example of that philosophy.
942cc V-twin
The 60º V-twin 942cc air-cooled engine, along with a pent-roof shaped combustion chamber and 9.0:1 compression ratio produces excellent power and superior low-end torque.
Engine
| Engine Type | Air-cooled, 4-stroke, SOHC 4-valve, V-twin |
|---|---|
| Displacement (cc) | 942.0 |
| Bore x Stroke (mm) | 85.0 x 83.0 |
| Compression Ratio | 9.0 : 1 |
| Lubrication System | Wet Sump |
| Fuel Management | Fuel injection |
| Ignition | TCI |
| Starter System | Electric |
| Fuel Tank Capacity (L) | 12.0 |
| Final Transmission | Belt |
| Transmission | Constant mesh 5-speed |
Chassis
| Frame Type | Double cradle |
|---|---|
| Suspension Front | Telescopic forks, 120mm travel |
| Suspension Rear | Swingarm, 70mm travel |
| Brakes Front | Hydraulic single disc, 298mm |
| Brakes Rear | Hydraulic single disc, 298mm |
| Tyres Front | 100/90-19M/C 57H Tubeless |
| Tyres Rear | 150/80B16M/C 71H Tubeless |
Dimensions
| Length (mm) | 2290 |
|---|---|
| Width (mm) | 830 |
| Height (mm) | 1120 |
| Seat Height (mm) | 690 |
| Wheelbase (mm) | 1570 |
| Ground Clearance (mm) | 130 |
| Wet Weight (kg) | 247 |
